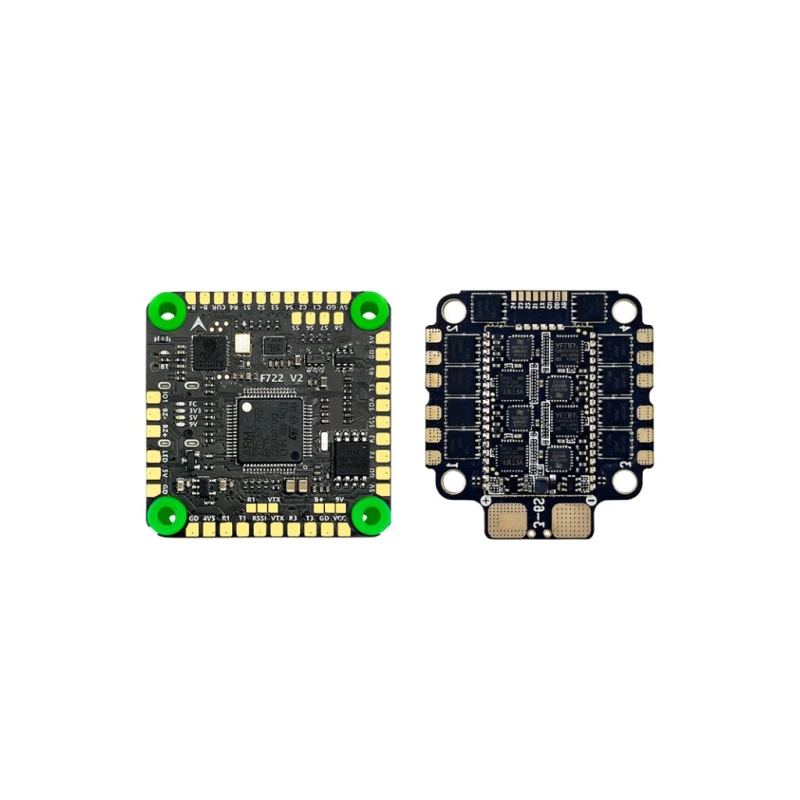

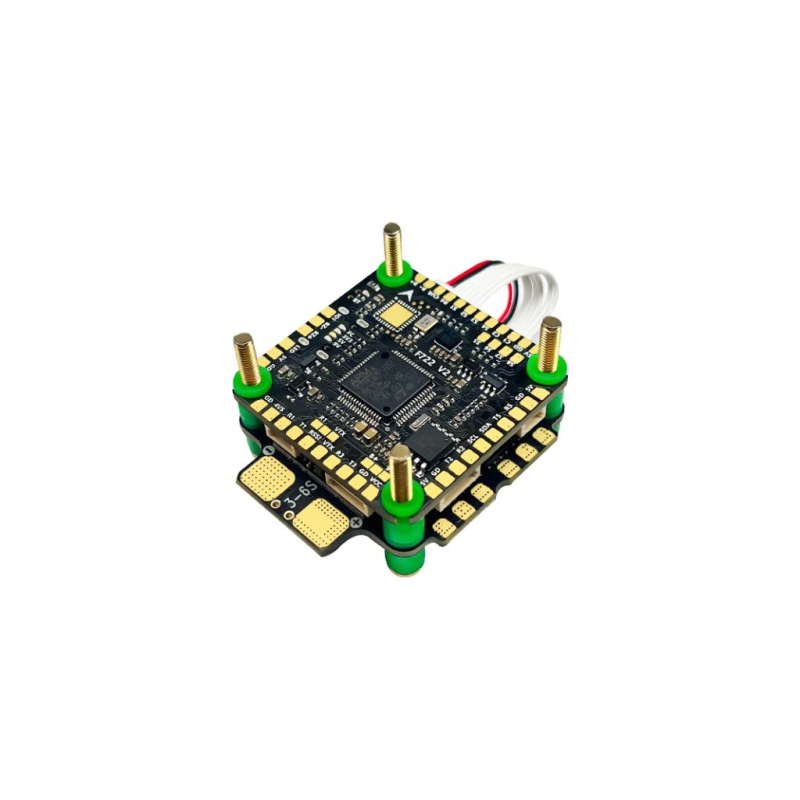

Stack Pilotix F722 V2 Bettle 3060 AM32 60A

Stack Pilotix F722 V2&Bettle 3060 AM32 60A

• F722 V2 Flight Controller (FC)

  • CPU: STM32F722RET6
  • Gyro: ICM42688P
  • Barometer: BMP280
  • Black Box: 16MB
  • OSD: Yes
  • Motor Output: 8 channels
  • UART: 5 channels
  • LED Strip: Yes
  • Buzzer: Yes
  • BEC Output: 4.5V/2A, 5V/2.5A, 9V/3A
  • Receiver: ELRS/CRSF/S.BUS/Frsky/Futaba/Flysky/TBS Crossfire/DSMX

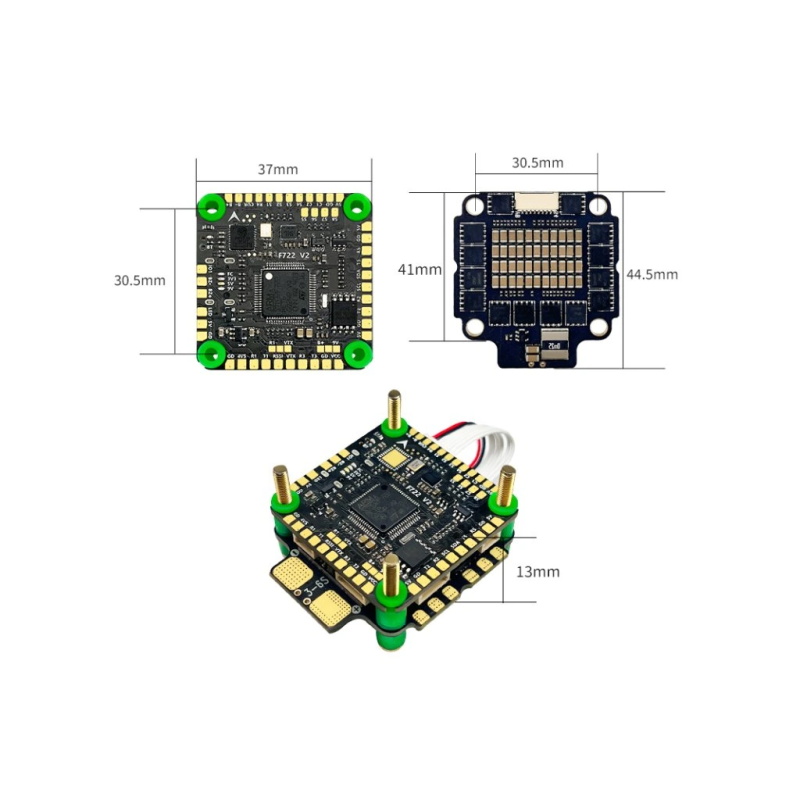

  • Dimensions: 37mm x 37mm
  • Weight: 9.4g
  • Mounting Holes: 30.5mm x 30.5mm
  • Firmware: AOCODARCF722V2

  3060 Electronic Speed Controller (ESC)

  • Continuous Current: 60A x4
  • Burst Peak Current: 70A x4
  • Input Signal: Dshot300/Dshot600/PWM/Bi-directional Dshot
  • Telemetry: Supported
  • Current Meter: Supported
  • Input Voltage: 3-6S Lipo
  • Firmware Name: AM32_AORC_AT421A
  • Operating Temperature: 20°C ~ +85°C
  • Operating Humidity: 20% ~ 95%
  • Storage Temperature: 20°C ~ +70°C
  • Weight: 13.9g
  • Mounting Holes: M3 30.5mm x 30.5mm
  • Dimensions: 41mm x 44.5mm

  Packaging Lists

  • 1x F722 V2 Flight Controller (FC)
  • 1x Bettle 3060 ESC
  • 2x 8PIN SH1.0 Connection Cables
