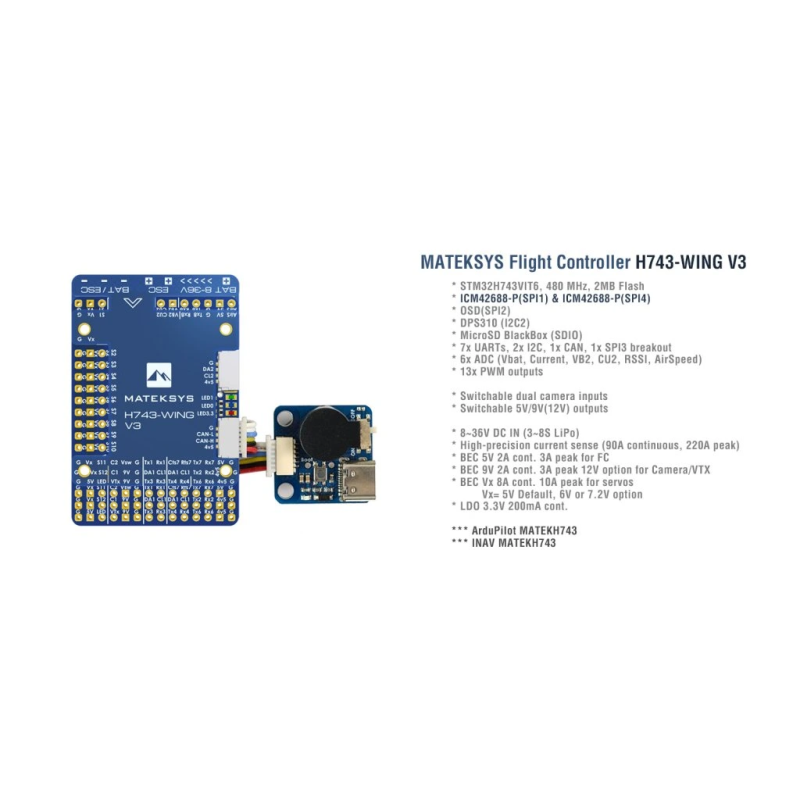

FC MATEKSYS H743-WING V3
    FC MATEKSYS H743-WING V3

FC MATEKSYS H743-WING V3

$199.00

The MATEKSYS H743-WING V3 is a high-performance flight controller designed specifically for fixed-wing UAVs and advanced long-range platforms.
Powered by the STM32H743 processor, it delivers exceptional computing power, stability, and reliability for demanding autopilot applications.

Quantity

  SECURE PAYMENT FOR YOUR ORDER

All payments are made through Paypal and Credit Card payment systems.

  WORLDWIDE SHIPPING

Our material can be shipped worldwide via our selected couriers

  24/7 TECHNICAL SUPPORT

Our technical support is available via Whatsapp and Email channels every day

Guarantee safe & secure checkout

Processor: STM32H743VIT6, 480MHz, 1MB RAM, 2MB Flash
Accelerometer/Gyroscope: ICM42688-P and ICM42605 (SPI4)
Barometer: Infineon DPS310 (I2C2)
OSD: AT7456E (SPI2)
Blackbox: MicroSD card slot (SDIO)
UART Ports: 7 (1,2,3,4,6,7,8) with built-in inversion
PWM Outputs: 13 (including LED pad)
I2C Ports: 2
CAN Port: 1
SPI3 Breakout Output: 1
LEDs: 3 LEDs for FC STATUS (blue, red) and 3.3V BEC indicator (red)
ADC: VBAT, Current, RSSI, Analog AirSpeed, VB2, CU2
Separate Board: USB Type-C / buzzer
Switchable Inputs: For using two cameras
BEC Switch: 5V/9V (12V)
High-Precision Current Sensor: Yes
ADC Voltage Divider VB2: 1K:10K
ADC Voltage Divider AirSpeed: 10K:10K
INAV TR/SA VTX Control: Yes
Buzzer Support: Yes
RSSI: Yes
Analog Airspeed Sensor Connection: Yes
Digital Airspeed Sensor Connection: Yes
Static Power Consumption: 160mA at 5V
Firmware INAV: MATEKH743
Firmware ArduPilot (ChiBiOS): MATEKH743
Firmware BetaFlight: MATEKH743
Mounting: 30.5 x 30.5 mm, hole diameter 4mm, with 3mm spacers
Dimensions: 54 x 36 x 13 mm
Weight: 30g (with USB extender)
